News Corner: WBFL Air Shower Analysis Of Common Questions

WBFL is committed to providing customers with high-quality air showers, as well as high quality services, free of charge to answer all your questions about the air shower. If we do not involve any questions you want to know, you can consult us for free through email, form or WhatsApp, and we will reply to you as soon as possible 24 hours.

WBFL air showers introduction and working principle

   WBFL air shower is a highly versatile local purifcation equipment instaed between clean rooms and non-clean rooms. There are two types to choose from: cargo air shower and person air shower. The air shower is a necessary channel to enter the clean room and when people or goods enter the clean area, they need to be blown by the air shower. The clean air blown out can remove the dust carried by people and goods. As such the air shower can also effectively block or reduce dust sources from entering the clean area.

   In addition, the front and rear doors of the cargo air shower or person air shower are electrically interlocked. Both doors cannot be opened at the same time. Only one door can be opened and closed and sealed before the other door can be opened. This can act as an air lock to prevent contamination as only the purified air enters the clean area.

   Air shower working principle is the air in the air shower area is sucked into the high pressure centrifugal fan through the primary filter(filter eficiency 90%@0.5um), the fan presses its wind pressure into the static pressure box, and then the purified air is filtered by the high efficiency filter(filter eficiency 99.99%@0.3um)is sprayed from different directions to the human body by the nozzles, and then the foating dust particles can be removed efficiently and quickly. After being filtered by primary and high efficiency filters, the dust particles will adhere to the filters and then circulate to the air shower area to achieve internal circulation without the need for external ventilation ducts or compressors.

WBFL various types of air showers

   Any top air shower brand should be able to provide users with various types of air showers, that is why you can choose WBFL. We can provide the customers with a variety of standard models of air showers, while providing the customers with reference, it can also customize air showers of any type, size and configuration for customers according to the customer's on-site environment and customer needs.

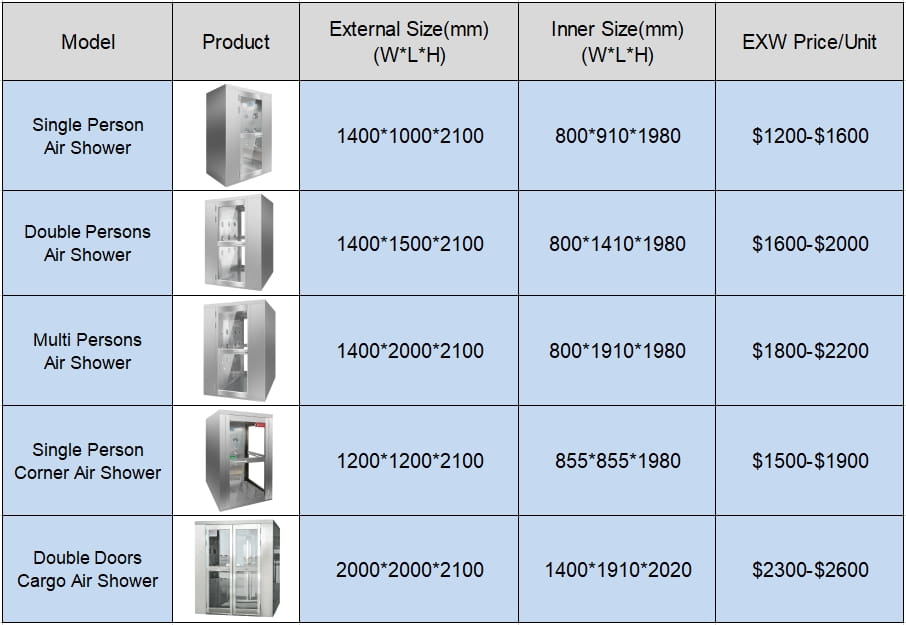

   If you are looking to select an air shower based on a supplier’s standard sizes,  just know there are many options for you to consider getting. Common choices include single, double and multi-person, and cargo air showers in standard sizes. Each design is suitable for different applications. So, you can be sure that WBFL has you covered regardless of where you want to use the air shower.

   WBFL can always design and manufacture air showers to customer specifications, which means you can customize an air shower to better suit your needs. This part involves more than just size, and it can involve the control system to be included in the air shower, the working logic, the prompt language, and more.

What are the advantages of WBFL air showers?

   WBFL is committed to the air showers more than 15 years, belongs to the Chinese excellent air shower manufacturer. There are a number of professional talents. In the same time, WBFL owns a group of advanced precision machinery and equipment to produce air showers that meet world standards.

   Up to now, WBFL has obtained more than 20 patented products, and passed ISO and CE certification. Our product quality and after-sales are guaranteed, and we can provide customers with one-stop service with high quality, low price, fast-delivery, considerate service and other core advantages, our air shower has been praised by lots of customers.

   In China, our production strength is leading, now, we will do our best to produce the most satisfactory products for our global customers, based on the air shower industry, to build our own brand response in the world. If you are looking for an air shower, you can contact us, we believe that our air shower will surprise you!

WBFL air showers component introduction

▶ Adjustable stainless steel air shower nozzles: WBFL air shower nozzles uses 304 stainless steel material, and the wind speed at the nozzles outlet can reach 25-30m/s, users can adjust the wind deflexion degree for any angle.

▶ English intelligent digital control panel: It can adjust the blowing time flexibly from 0-99s, and English voice broadcast the process of blowing, the users can operate according to the voice prompt requirements, so as to achieve the best blowing effect.

▶ Dedicated air shower fan: WBFL air shower uses high-power pure copper wire fans, while ensuring stability and durability, the wind speed at the nozzles outlet is as high as 25m/s-30m/s, and it also be equipped with multiple protections such as overheating, overcurrent, short circuit.

▶ Door closer: Built-in air shower dedicated door closer, exquisite design, durable, and 1 million times service life.

▶ Return air window: Dedicated return air window for the air shower has a built-in primary filter, which can adjust the circulating air volume in the air shower while reducing dust pollution.

▶ Air shower filters: WBFL air shower uses superfine glass fiber H13/H14 high efficiency filter, provides galvanized iron fram or aluminum frame, to protect the filter and makes it a longer life, and the filtration efficiency reaches 99.99% or 99.997%.

Which industries are WBFL air showers suitable for?

   The WBFL air showers has strong applicability and is widely used in pharmaceutical, hospital, food, laboratory, electronics and other industries.

▶ Clean room environment: Air shower are often installed at the entrances of clean room to further enhance the cleanliness level.

▶ Biopharmaceutical and medical device manufacturing: Air shower are widely used in these industries to prevent the entry of microorganisms and particles into the production environment, ensuring the quality and safety of the final products.

▶ Electronics manufacturing: In electronics manufacturing, especially in the production of semiconductors, air shower are employed to prevent dust and particles from contaminating tiny electronic components, ensuring the reliability and performance of the equipment.

▶ Laboratories: Some research laboratories and medical labs use air shower to provide a clean working environment, preventing external contamination of experimental samples.

▶ Food processing: Air shower are utilized in food processing to maintain a clean and sterile environment during the handling and preparation of food products, prevent the introduction of contaminants during various stages of food processing.

Can the door opening direction of the WBFL air showers be adjusted according to customer requirements?

   The standard straight-through air showers has 4 types of door opening directions, both the entrance and exit doors is opened to the outside of the air shower chamber, and the door can also be opened to the inside of the air shower room, but it need the air shower ‘s depth have enough space.

   WBFL as the direct manufacturer of the air shower, we can support different kinds of specail requirement. Normaly the standard air shower has two doors, But in some occassions, sometimes the site where install the air shower is limited, so the air shower needed to be customized “L” or “T” shape. Sometimes the air shower need to have one entrance and 2 exits or 2 entrance and 1 exit. Sometimes the air shower need to be customized tunnel shape to pass more persons one time. Of course, these types of air showers can be easily implemented in our factory.

WBFL air showers installation conditions and process

▶ Before installation, please measure whether the ground in the area where the air shower is placed is flat, the flatness error is within ±3mm.

▶ Before sealing or sealing the panels around the air shower, please first confirm whether the gaps in the door body are consistent and whether the diagonals are consistent. If consistent, please test whether the entrance door and exit door open and close smoothly.

▶ If the first two requirements are not confirmed before installation, and after the surrounding sealing is completed, if problems such as the air shower door opening and closing not being smooth, the door body tilting, and sagging are found and adjustments cannot be made, the surrounding sealing materials need to be removed before adjustment can be made.

How is WBFL air showers shipped?

   After the air showers is completed, it will be tested first. If there is no problem, we have two delivery methods according to the size of the air showers, one is the whole machine delivery, and the other is the module delivery. Generally, our standard-sized air showers are delivered as a whole machine. When you receive the goods, you only need to move it to the place where it is used and plug it in to use it directly; if it is a non-standard customized large-sized air showers, we will ship it in a module, which can reduce the freight, but you need to do some simple assembly. Of course, we will also provide you with assembly videos and operating instructions. It should be noted that the assembly is also very simple.

   Then our factory will pack it in standard export wooden boxes for convenient export. In addition, sometimes the goods need to be shipped all over the world. Considering the long voyage time, we will fill it with foam before packaging to reduce damage to the goods during collision and protect the air shower as much as possible. Since WBFL has been in the air shower industry for 15 years and has a fixed cooperative shipping agent, it can also provide preferential freight and better timeliness. We currently support international trade terms such as EXW, FCA, FOB, CIF, DDP, etc, and we will also easily recommend the best air shower delivery method to customers.

What services does WBFL currently support?

WBFL air shower factory direct sales, no middlemen earn price profits

 ▶ We provide professional air shower design, which complies with ISO and EU CE standard(free of charge)

 ▶ We provide professional advice for the air shower( free of charge)to ensure better functionality and cost-effectiveness of your air shower.

 ▶ We have strict quality control system to ensure the quality of your product, and we will inspect and test all products carefully to ensure no damage and lost before delivery.

 ▶ Customization service is available, OEM/ODM business is appreciated.

 ▶ We provide professional international shipping and declaration services.

 ▶ We provide intimate pre-sales and after-sales service.

 ▶ We have a professional after-sales department, and provide longer warranty period and more complete after-sales service (top in the purification industry)

Which countries are WBFL air shower rooms currently exported to?

   WBFL air showers have been exported to the following countries(countries in no particular order):

 ▶ Asia: Thailand, Malaysia, Indonesia, Pakistan, Philippines, Singapore, Mongolia, Vietnam, Laos, Cambodia, Myanmar, South Korea, Japan, Saudi Arabia, United Arab Emirates, Kazakhstan

 ▶ Europe: Germany, France, Serbia, Finland, Latvia, Sweden, Czech Republic, Slovakia, Poland, Spain, Malta, Croatia, Slovenia, Macedonia, Romania, Greece, Estonia

 ▶ Americas: United States, Mexico, Chile, Ecuador, Colombia, Bolivia
